High Temperature Heat Pump
High Temperature Heat Pump High Temperature Heat Pump

High Temperature Heat Pump

This heat pump unit is an innovative energy technology, making waves around the globe. It captures low temperature energy sources, such as natural air or ground-source hot water. After the electricity is generated, the energy is transformed into a higher level of heat, suitable for bathing, pools, hotels, villas, factories and farms. The heat pump unit delivers hot water of temperatures of up to 90 degrees for multiple uses. It also features cold recovery patented technology that can partially restore the cold capacity, making it appropriate for places requiring both heat pumps and chillers.

Request a Quote
Download

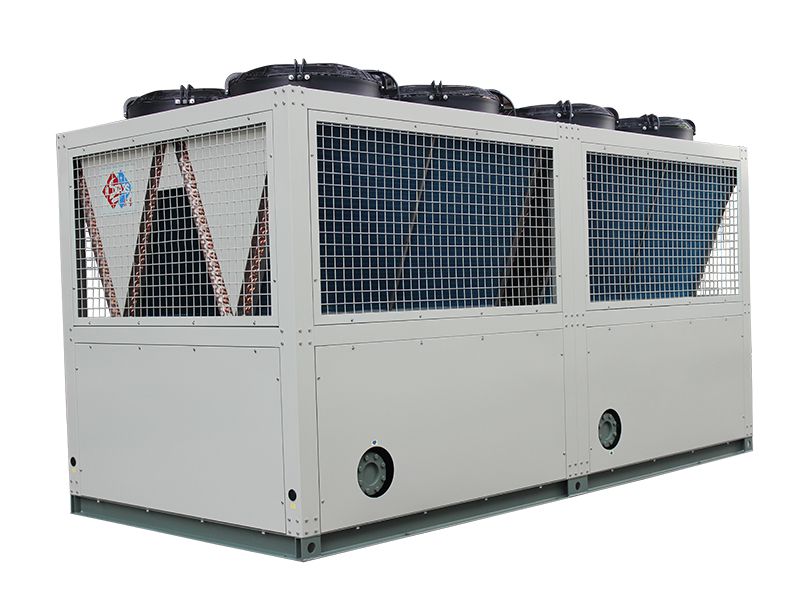

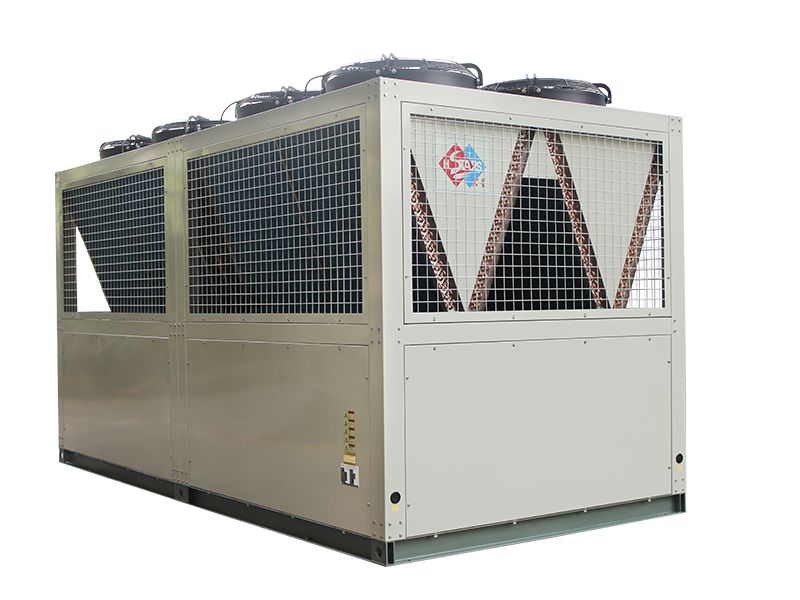

Air Source High Temperature Heat Pump

This air-source heat pump offers a wide range of temperatures from 55°C to 95°C, making it perfect for industrial heating and special projects. With a COP of 2.3 when delivering 90°C water, it also makes for a more efficient energy source. Moreover, the optional frequency conversion setting allows for even greater energy efficiency, while the optional cold recovery feature prepares chilled water between 5°C and -30°C. Overall, this system is an ideal choice for any high-temperature process or special project.

Specifications

Air Source High Temperature Heat Pump

Refrigerant: R134a
Power supply: 380V-3N-50Hz

Model Nominal heating capacity Power input kW Capacity control % Refrigerant charge kg Condenser Evaporator / Fan Noise level dB(A) Shipping weight kg Operating weight kg
kW USRT Pipe diameter (inlet/outlet) in Water flow m3/h Design water pressure MPa Water pressure drop kPa Quantity Air flow m3/h Power
80HW-M45/20AHS4 404 115 179 10
75
100 		85 3″ 69 1 53 6 144000 12 75 2650 2900
80HW-M55/25AHS4 462 131 208 95 3″ 79 1 54 6 144000 12 76 2750 3050
80HW-M65/32AHS4 604 172 253 125 4″ 104 1 55 8 192000 16 77 2850 3200
80HW-M83/41AHS4 732 208 305 150 5″ 126 1 56 8 192000 16 78 3000 3250
80HW-M45/20AHD4 807 230 357 170 5″ 139 1 68 12 288000 24 79 3500 3750
80HW-M55/25AHD4 924 263 417 190 5″ 159 1 69 12 288000 24 80 3700 3950
80HW-M65/32AHD4 1207 343 505 250 8″ 208 1 74 16 384000 32 86 3860 4110
80HW-M83/41AHD4 1463 416 611 300 8″ 252 1 80 16 384000 32 90 3970 4220

Notes:

  • 1. Rated cooling capacity standard: air dry / wet bulb temperature 20℃ /15℃, hot water inlet/outlet temperature 85℃ /90℃, fouling factor 0.088 ㎡•℃ /kW;
  • 2. Ambient temperature range: 5℃ ~43℃. Please contact us in case of ambient temperature lower than 5℃
  • 3. Hot water outlet maximum temperature: 95℃;
  • 4. Specifications and dimensions are subject to improvement without notice.
Water Source High Temperature Heat Pump

This water source heat pump can produce hot water between 55°C and 95°C without the limitations of the surrounding temperature, so it is suitable for a diverse range of applications such as waste heat recovery, high temperature recycling, heating, drying, and industrial manufacturing processes. The COP is 3.0 when the outlet water is at 90°C and the temperature of the water inlet is 5°C or above.

Specifications

Water Source High Temperature Heat Pump, 80℃

Refrigerant: R134a
Power supply: 380V-3N-50Hz

Model Nominal heating capacity Capacity control % Refrigerant charge kg Condenser Evaporator Noise level dB(A) Shipping weight kg Operating weight kg
Heating capacity kW Power input kW Pipe diameter (inlet/outlet) in Water flow m3/h Design water pressure MPa Water pressure drop kPa Pipe diameter (inlet/outlet) in Water flow m3/h Design water pressure MPa Water pressure drop kPa
80HW-M100WHS4 97 40 33
66
100 		25 2-1/2″ 17 1 37 2″ 10 1 43 73 980 1230
80HW-M230WHS4 240 94 25
50
75
100 		55 3″ 41 1 45 2-1/2″ 25 1 62 74 1350 1600
80HW-M260WHS4 247 96 45 3″ 42 1 46 3″ 26 1 63 75 1460 1710
80HW-M410WHS4 402 153 80 4″ 69 1 51 4″ 43 1 71 79 2030 2280
80HW-M470WHS4 457 172 120 5″ 79 1 53 4″ 49 1 72 80 2180 2430
80HW-M710WHS4 689 257 175 5″ 118 1 58 5″ 74 1 72 85 2980 3230
80HW-M790WHS4 760 281 195 5″ 131 1 64 6″ 82 1 73 86 3220 3470

Notes:

  • 1. Rated cooling capacity standard: heat source water inlet/outlet temperature 35℃ /30℃, hot water inlet/outlet temperature 75℃ /80℃, fouling factor 0.088 ㎡•℃ /kW;
  • 2. Minimum heat source water outlet temperature: 15℃;
  • 3. Hot water maximum outlet temperature: 85℃.
For over 30 years, H.Stars Group has been a company that focuses on the manufacture and supply of premium quality industrial chillers and heat pumps for customers who are looking for the commercial and industrial air conditioning and heating systems. More than just a specialist manufacturer for chillers, heat pumps and air handling units, H.Stars Group offers efficient cooling and heating solutions to ensure a comfortable indoor environment for both industrial and commercial spaces such as manufacturing plants, meat processing plants, cold storage rooms, shopping malls, offices, healthcare facilities, schools, data centers, hotels, airports, and more. We at H.Stars Group aim to be a reliable partner for customers around the globe to deliver outstanding heating, ventilation and air conditioning solutions.
