This modular water source heat pump machine has a wide range of applications, capable of yielding both cooling and heating functions. It's energy saving properties make it an ideal product for projects involving the withdrawal of water or ground source water. The capacity is vast: the cooling range is between 70kW and 200kW while the heating is between 90kW and 230kW with its outlet temperature of hot water reaching up to a maximum of 50°C. Its cool water temperature ranges from 5°C to 20°C. The module has the capacity to work with 8 units at once.

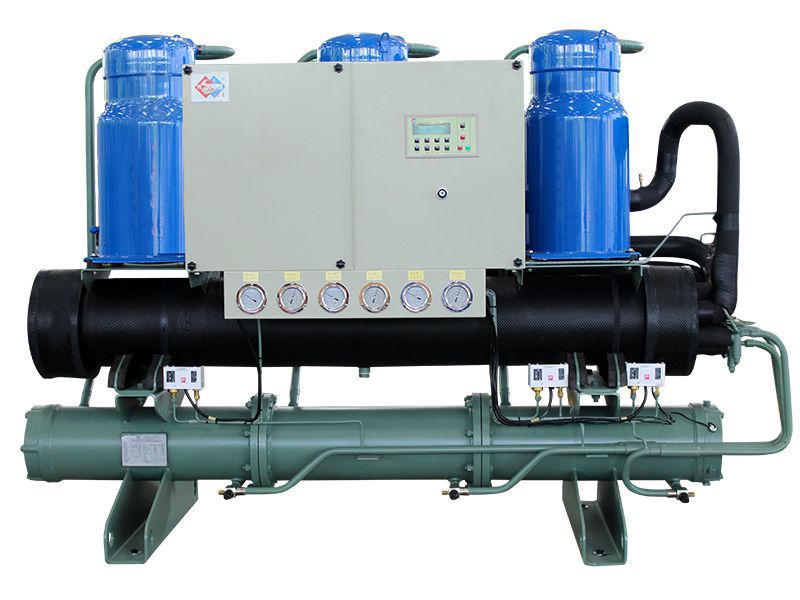

This water source heat pump module embraces sophisticated modular control technology. The interaction between the main unit and the others allows for a single control screen to be used for monitoring and managing the operation of multiple units. Each component also has individual autonomy, allowing for stand-alone operation.
The units record the length of time that the compressor is running, and adjust the start and stop times accordingly. When loading and unloading the running load, maintain balance of operation among the compressors and keep wear evened out. Password protection is available in multiple levels all with parameters that can be modified, such as a one-time timer, week timer switch, week timing setup, and holiday setting.

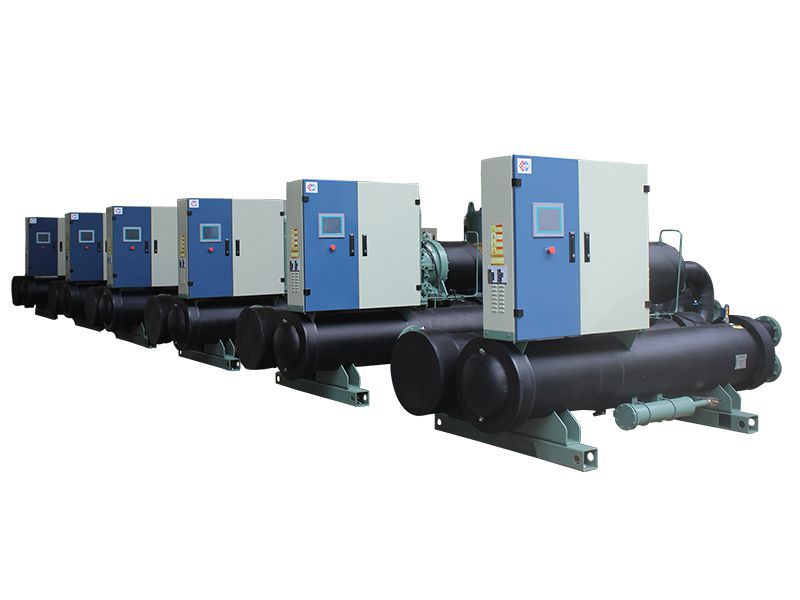

This system offers up to 16 groups of modules and can be easily adjusted to accommodate many capacities. Its modular units and flexible installation options make it suitable even in small areas - it can be set up in a variety of different places and save precious space. Expanding the system's capacity is a breeze, allowing for gradual investment.
The unit consists of multiple independent refrigerant systems, none of which impair the performance of the other when activated. Even when an alarm shutdown occurs in one system, it won't impact any of the other circuits. Should a module alarm & halt, it does not interfere with the operation of the other modules.

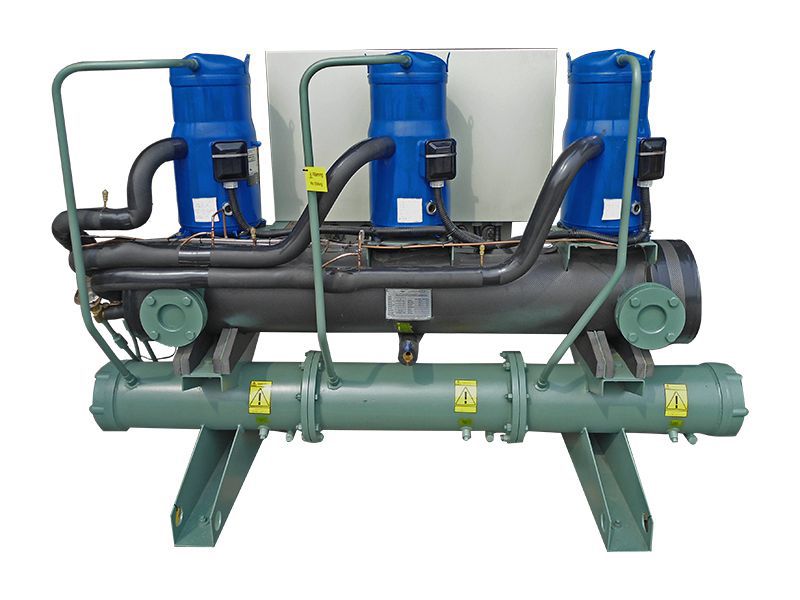

This air conditioning unit employs a branded compressor and expansion valve and a high-efficiency heat exchanger made in-house to provide a quiet and effective operation. The heat exchanger, which is the most important component, affects the unit’s quality and shelf-life. The heat exchanger tube, the unit’s only external part in contact with the air, should have the right thickness and made of an appropriate material, dependent on the quality of the air and water in the area of use.

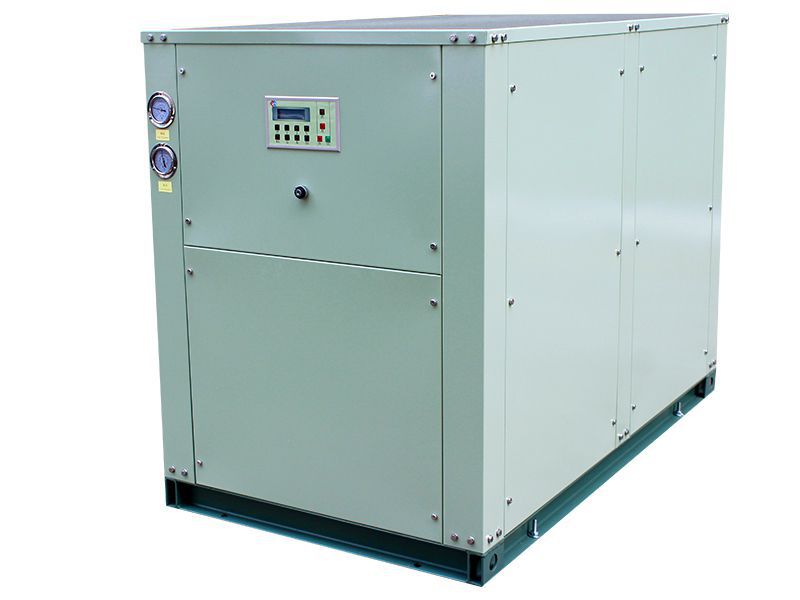

Modular Water Source Heat Pump
Refrigerant: R410a
Power supply: 380V-3N-50Hz
| Model | Nominal cooling capacity | Nominal heating capacity | Compressor quantity | Chilled water | Groundwater | Noise level dB(A) | Shipping weight kg | Operating weight kg | ||||||
| Cooling capacity kW | Compressor power input kW | Heating capacity kW | Compressor power input kW | Pipe diameter (inlet/outlet) in | Water flow m3/h | Water pressure drop kPa | Pipe diameter (inlet/outlet) in | Water flow m3/h | Water pressure drop kPa | |||||
| | 74 | 13 | 87 | 19 | 2 | 2" | 13 | 28 | 2" | 16 | 56 | 68 | 490 | 560 |
| | 96 | 18 | 111 | 25 | 2 | 2-1/2" | 17 | 30 | 2-1/2" | 21 | 58 | 69 | 580 | 650 |
| | 148 | 26 | 174 | 38 | 4 | 2-1/2" | 25 | 33 | 3" | 32 | 60 | 70 | 980 | 1120 |
| | 192 | 36 | 222 | 50 | 4 | 2-1/2" | 33 | 35 | 3" | 41 | 61 | 71 | 1160 | 1300 |
Notes:
