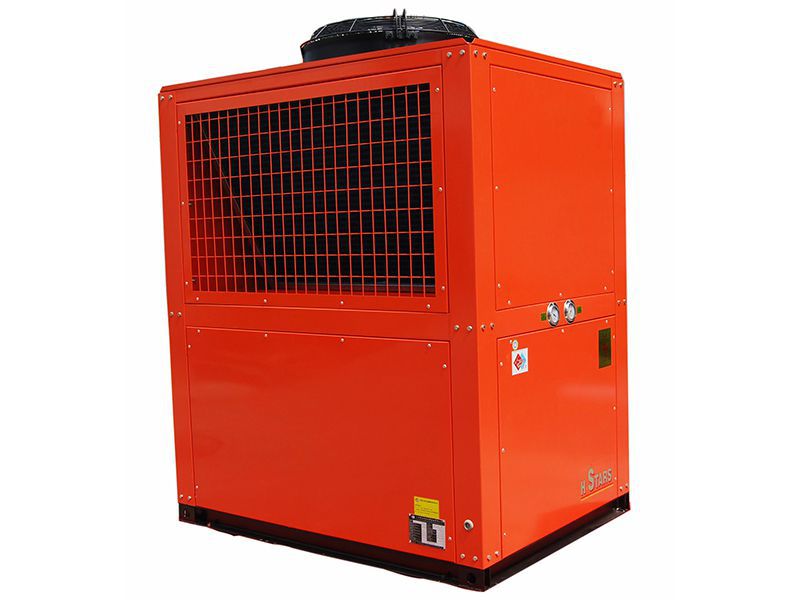

Low Temperature Air Source Heat Pump with Screw Compressor

Low Temperature Air Source Heat Pump with Screw Compressor

H.Stars has created a special air source single / double compressor heat pump unit that perfectly caters to the cold weather in the north for efficient central heating of 2000-10000 square meters in residential and commercial areas. Low ambient temperature is no barrier for this product; it can even maintain an output of up to 60 ℃ when temperatures plummet to -35 ℃ and and up to 70 ℃ when the ambient temperatures drop to -25 ℃. It is specifically suited for heating replacement requirement of old city areas. This special heat pump with screw compressor is an ideal solution to all the smog control and boiler replacement needs.

This air source heat pump hot water unit uses a special low-temperature compressor, available in two varieties - scroll and screw type. With modular design, our heat pump units can be used independently or linked together. Therefore, it is both flexible and efficient, making it well-suited for areas with temperature needs between 35-50 ℃ at ambient temperatures of -25~35℃. It also has both heating and cooling capabilities and produces hot water up to 50 ℃, giving it the versatility to meet a wide range of needs.

Request a Quote
Download
Specifications

Low Temperature Air Source Heat Pump with Screw Compressor

Refrigerant: R134a
Power supply: 380V-3N-50Hz

Model Nominal heating capacity Compressor power input kW Capacity control % Refrigerant charge kg Condenser Evaporator / Fan Noise level dB(A) Shipping weight kg Operating weight kg
kW USRT Pipe diameter (inlet/outlet) in Water flow m3/h Design water pressure MPa Water pressure drop kPa Quantity Air flow m3/h Power kW
80HW-M250CDH4 211 60 98 10
50
100
80 3″ 36 1 50 8 124000 10 75 4500 4700
80HW-M300CDH4 239 68 108 100 4″ 41 1 52 8 160800 16 75 5000 5200
80HW-M350CDH4 307 87 148 0
50
120 4″ 53 1 52 8 160800 16 75 5500 5700
80HW-M450CDH4 369 105 177 75
100
150 4″ 64 1 54 8 160800 16 75 6000 6200

Notes:

  • 1. Rated cooling capacity standard: air dry / wet bulb temperature -12℃ /-14℃, hot water inlet/outlet temperature 60℃ /65℃, fouling factor 0.088 ㎡•℃ /kW;
  • 2. Hot water temperature range: 55℃ ~85℃;
  • 3. Ambient temperature range: -30℃ ~30℃
  • 4. Specifications and dimensions are subject to improvement without notice.
Optional
  • Frequency conversion heating unit
  • Heat exchanger tube
  • Cloud services
  • Electric auxiliary heater
