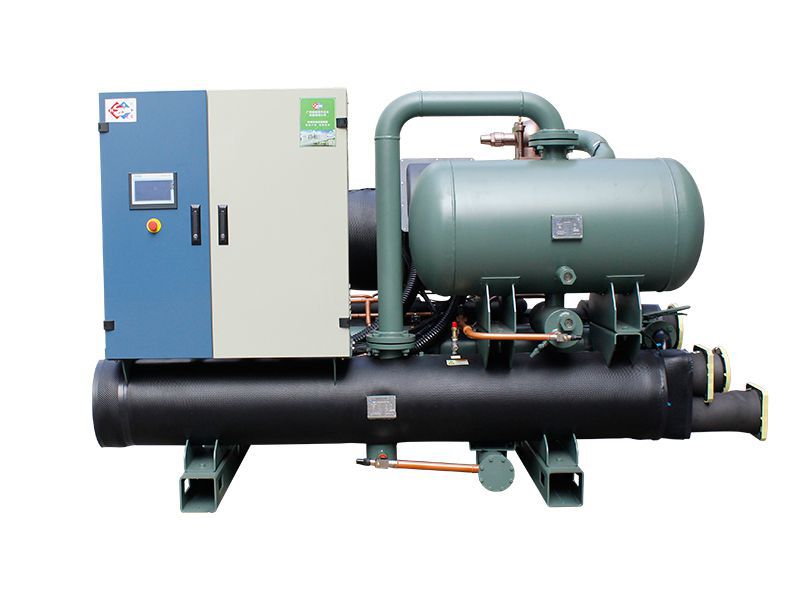

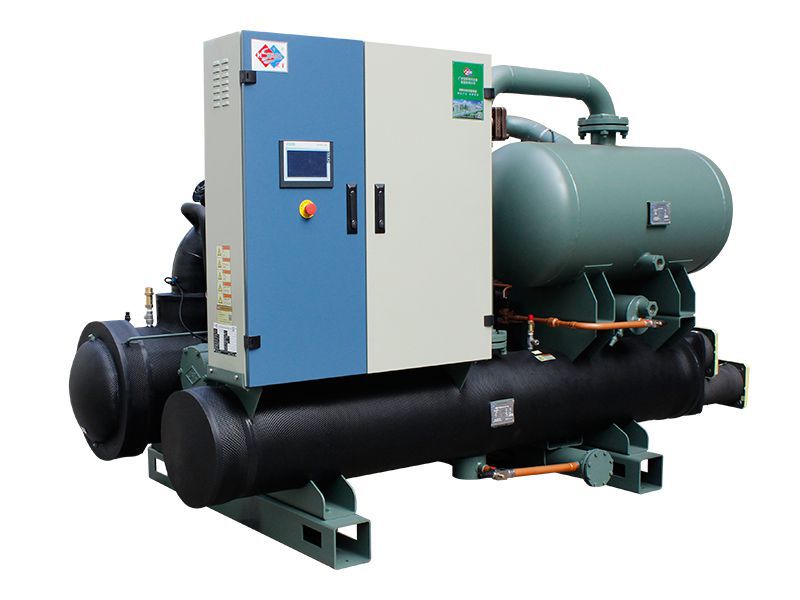

Dual-Source Heat Pump
This innovative dual-source heat pump gives you the convenience of simultaneously providing heating and cooling functions, or simply one or the other if that is all that is desired. Standard models come with a hot water temperature range of 50-65 ℃ and a cool water temperature range of 5-20 ℃.
Features
- Equipment designed to provide immediate satisfaction with simultaneous access to both hot and cold water, so that neither requirement stands in the way of the other; no more waiting for one demand to be filled before the other can be addressed.
- An all-in-one unit combining both heating and chilling functions and offering smart control of a water pump and storage tank for effortless and straightforward operation.
- Non-standard or oversize unit are available to fit the specific requirements of any client.
- One machine with dual functions - investing in just one unit that can yield two different outputs, leading to significant savings in terms of both investment in equipment and operational costs.
- By investing in energy-efficient technology, you can dramatically reduce your operating costs while decreasing emissions with an incredible integrated part-load value of 8.0 or more.
- The operation of this dual source heat pump is made easy and efficient with a single-button switch. Intuitive and straightforward, it boosts user experience with its intelligent simplicity.
Specifications
Dual-Source Heat Pump
Refrigerant: R134a
Power supply: 380V-3N-50Hz
| Model | Nominal cooling | Nominal heating | Capacity control % | Refrigerant charge kg | Condenser | Evaporator | Noise level dB(A) | Shipping weight kg | Operating weight kg |
| Cooling capacity kW | Compressor power input kW | Heating capacity kW | Compressor power input kW | Structure | Air flow ×1000 m3/h | Power kW× unit | Pipe diameter (inlet/outlet) in | Water flow m3/h | Design water pressure MPa | Water pressure drop kPa |
| 40STE-110AHSY4 | 113 | 36 | 121 | 35 | 0
66
100 | 33 | Copper tube with corrugated aluminum fins | 40 | 2.0×2 | 2-1/2″ | 21 | 1 | 28 | 68 | 1550 | 1660 |
| 40STE-160AHSY4 | 160 | 50 | 169 | 48 | 0
50
75
100 | 45 | 57 | 1.2×4 | 3″ | 29 | 1 | 33 | 68 | 1960 | 2140 |
| 40STE-210AHSY4 | 214 | 65 | 225 | 63 | 51 | 80 | 2.0×4 | 3″ | 39 | 1 | 48 | 68 | 2940 | 3160 |
| 40STE-240AHSY4 | 252 | 74 | 263 | 71 | 73 | 85 | 1.2×6 | 3″ | 45 | 1 | 55 | 68 | 3120 | 3340 |
| 40STE-280AHSY4 | 297 | 86 | 308 | 82 | 82 | 121 | 2.0×6 | 4″ | 53 | 1 | 61 | 72 | 3300 | 3550 |
| 40STE-310AHSY4 | 319 | 93 | 333 | 89 | 89 | 121 | 2.0×6 | 4″ | 57 | 1 | 64 | 72 | 3480 | 3730 |
| 40STE-340AHSY4 | 347 | 103 | 363 | 98 | 98 | 161 | 2.0×8 | 4″ | 62 | 1 | 66 | 72 | 3660 | 3980 |
| 40STE-380AHDY4 | 397 | 120 | 417 | 115 | 0
25
37.5
50
62.5
75
87.5
100 | 114 | 161 | 2.0×8 | 5″ | 72 | 1 | 68 | 73 | 5620 | 6040 |
| 40STE-420AHDY4 | 428 | 130 | 450 | 126 | 122 | 161 | 2.0×8 | 5″ | 77 | 1 | 68 | 73 | 5800 | 6280 |
| 40STE-480AHDY4 | 504 | 148 | 526 | 142 | 146 | 170 | 1.2×12 | 5″ | 90 | 1 | 70 | 73 | 6240 | 6680 |
Notes:
- 1. Rated cooling capacity standard: air dry / wet bulb temperature 35℃ /24℃, chilled water inlet/outlet temperature 12℃ /7℃, fouling factor 0.088 ㎡•℃ /kW;
- 2. Chiller water temperature range: 5℃ ~20℃;
- 3. Rated heating capacity standard: air dry / wet bulb temperature 7℃ /6℃, hot water inlet/outlet temperature 40℃ /45℃;
- 4. Hot water temperature range: 35-50°C;
- 5. Cooling ambient temperature range: 15℃ ~43℃, heating ambient temperature range: -10℃ ~43℃;
